Engine: 6.5HP ZHONGSHEN gasoline engine
Support nozzle: 1708, 417, 517
Max. Marking speed: 130m/min
Thickness of spray: 0.2-0.4mm
Marking Width: 8-25cm
Flow of spray: 3.8L/min
•One or two hands spray guns to choose from.

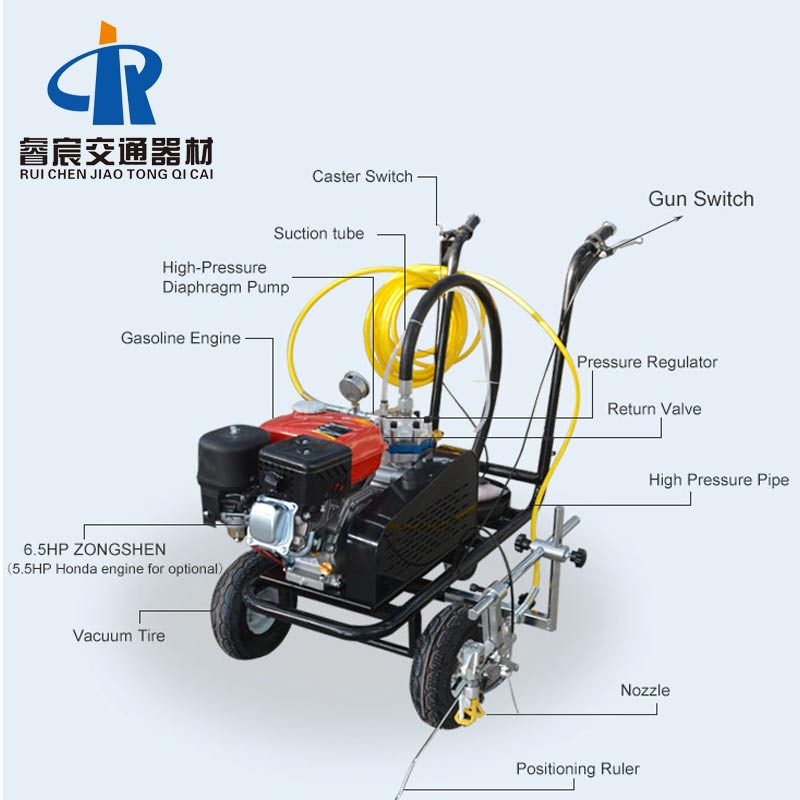

•Diaphragm pump: Stainless diaphragm pump, longer service life.
•5.5HP imported gasoline engine, have a stable and strong performance.
•Special equipment for normal temperature marking construction, easy to operate.
•Road marking spray paint machine is mainly suitable for painting straight lines, dashed lines, curves, zebra crossings, swords, arrows, graphic signs, etc. in factories and on highways, parking lots, airports, and gas stations.
Diaphragm Pump Road Painting Machine Parameters:
|Engine:||6.5HP ZHONGSHEN gasoline engine|
|Max. Marking speed:||130m/min|
|Support nozzle:||1708, 417, 517|
|Thickness of spray:||0.2-0.4mm|
|Flow of spray:||3.8L/min|
